android +qpython+web.py+ngrok.py 架站
目的：把web server掛在手機 上且外網可以存取服務
download qpython

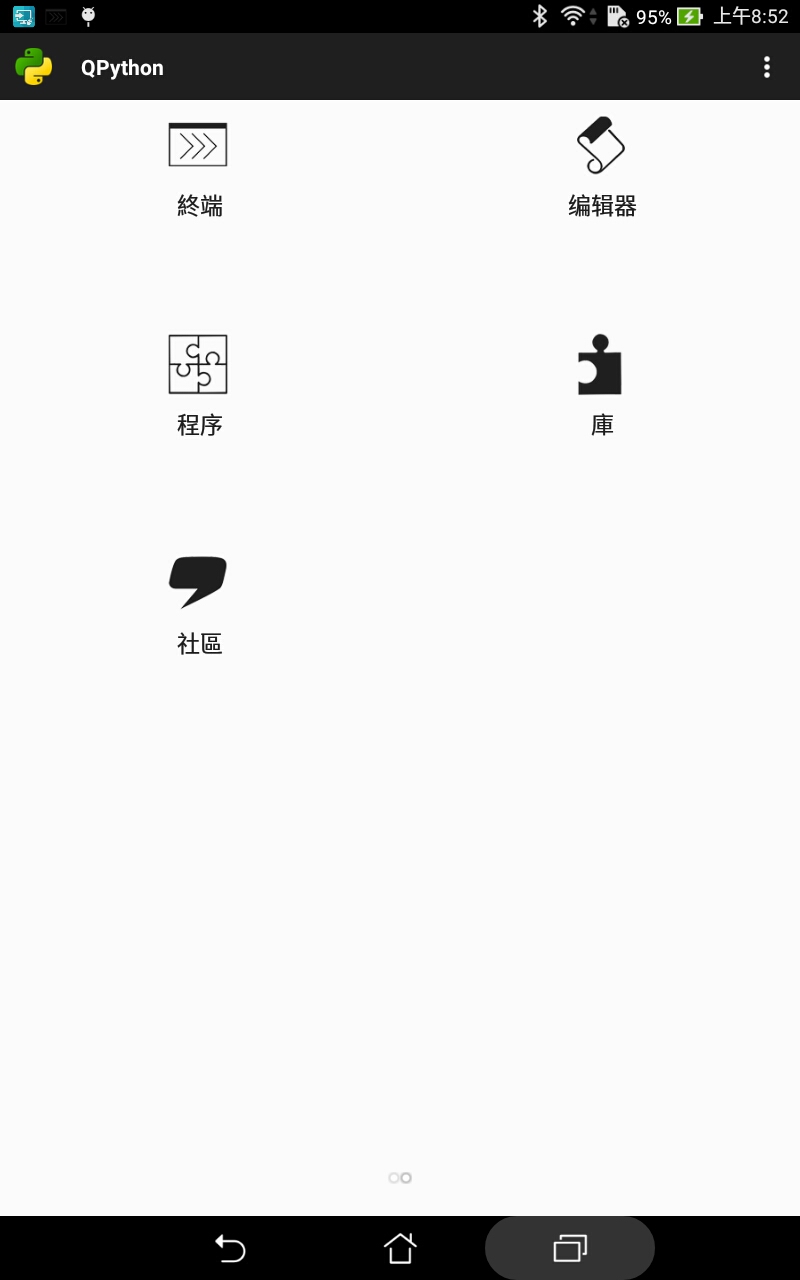

點擊進入庫

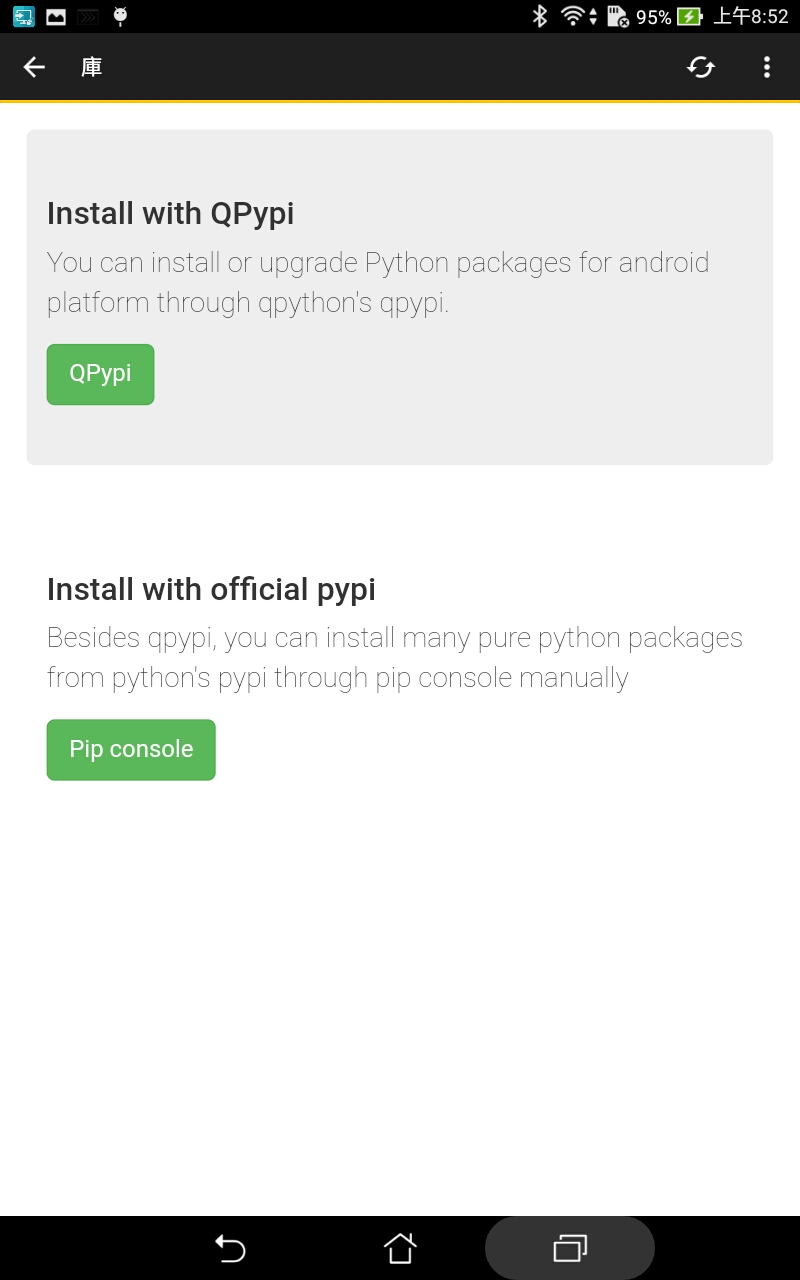

點擊進入pypi

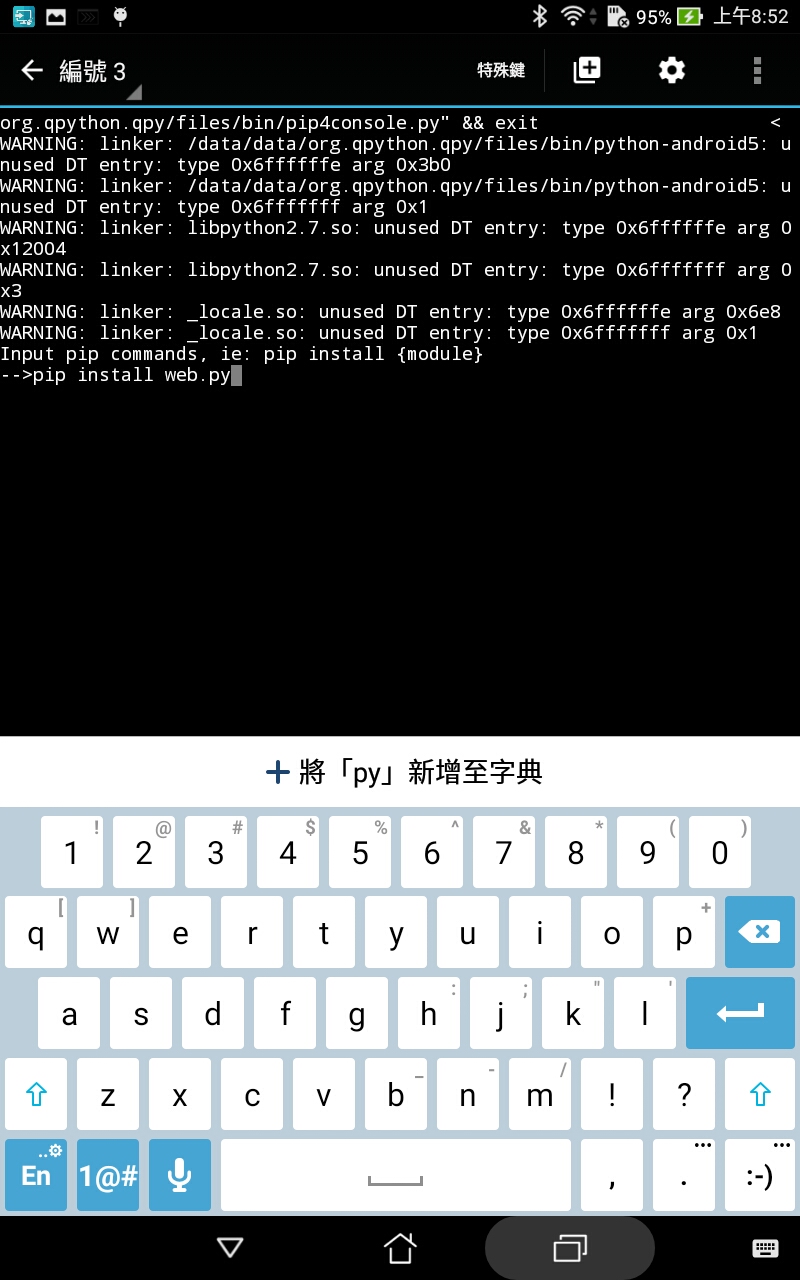

pip install web.py
比較好的做法是在外面寫好再匯入
web.py
import web
urls=('/','Index',
'/receivemessage','message')
app=web.application(urls,globals())
web.config.debug=True
class Index:
def GET(self,name=None):

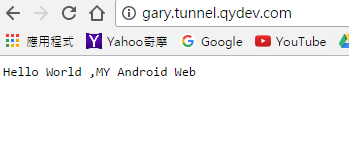

return "Hello World ,MY Android Web"
class message:
def GET(self):
data=web.input()
return 'param1='+data.param1 +'/param2=' + data.param2
if __name__ == "__main__": app.run()
ngrok.py
#!/usr/bin/env python
# -*- coding: UTF-8 -*-
# 建议Python 2.7.9 或 Python 3.4.2 以上运行
# 项目地址: https://github.com/hauntek/python-ngrok
# Version: v1.46
import socket
import ssl
import json
import struct
import random
import sys
import time
import logging
import threading
host = 'tunnel.qydev.com' # Ngrok服务器地址
port = 4443 # 端口
bufsize = 1024 # 吞吐量
Tunnels = list() # 全局渠道赋值
body = dict()
body['protocol'] = 'http'
body['hostname'] = 'myauo.auo.com'
body['subdomain'] = 'gary'
body['rport'] = 0
body['lhost'] = '127.0.0.1'
body['lport'] = 8080
Tunnels.append(body) # 加入渠道队列
body = dict()
body['protocol'] = 'http'
body['hostname'] = ''
body['subdomain'] = 'gary'
body['rport'] = 0
body['lhost'] = '127.0.0.1'
body['lport'] = 8080
Tunnels.append(body) # 加入渠道队列
body = dict()
body['protocol'] = 'tcp'
body['hostname'] = ''
body['subdomain'] = ''
body['rport'] = 55499
body['lhost'] = '127.0.0.1'
body['lport'] = 22
Tunnels.append(body) # 加入渠道队列
# 读取配置文件
if len(sys.argv) >= 2:
file_object = open(sys.argv[1])
try:
all_the_text = file_object.read()
config_object = json.loads(all_the_text)
host = config_object["server"]["host"] # Ngrok服务器地址
port = int(config_object["server"]["port"]) # 端口
bufsize = int(config_object["server"]["bufsize"]) # 吞吐量
Tunnels = list() # 重置渠道赋值
for Tunnel in config_object["client"]:
body = dict()
body['protocol'] = Tunnel["protocol"]
body['hostname'] = Tunnel["hostname"]
body['subdomain'] = Tunnel["subdomain"]
body['rport'] = int(Tunnel["rport"])
body['lhost'] = Tunnel["lhost"]
body['lport'] = int(Tunnel["lport"])
Tunnels.append(body) # 加入渠道队列
del all_the_text
del config_object
except Exception:
# logger = logging.getLogger('%s' % 'config')
# logger.error('The configuration file read failed')
# exit(1)
pass
finally:
file_object.close()
mainsocket = 0
ClientId = ''
pingtime = 0
def getloacladdr(Tunnels, Url):
protocol = Url[0:Url.find(':')]
hostname = Url[Url.find('//') + 2:]
subdomain = hostname[0:hostname.find('.')]
rport = Url[Url.rfind(':') + 1:]
for tunnelinfo in Tunnels:
if tunnelinfo.get('protocol') == protocol:
if tunnelinfo.get('hostname') == hostname:
return tunnelinfo
if tunnelinfo.get('subdomain') == subdomain:
return tunnelinfo
if tunnelinfo.get('protocol') == 'tcp':
if tunnelinfo.get('rport') == int(rport):
return tunnelinfo
return dict()
def dnsopen(host):
try:
ip = socket.gethostbyname(host)
except socket.error:
return False
return ip
def connectremote(host, port):
try:
host = socket.gethostbyname(host)
client = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
ssl_client = ssl.wrap_socket(client, ssl_version=ssl.PROTOCOL_SSLv23)
ssl_client.connect((host, port))
ssl_client.setblocking(1)
logger = logging.getLogger('%s:%d' % ('Conn', ssl_client.fileno()))
logger.debug('New connection to: %s:%d' % (host, port))
except socket.error:
return False
return ssl_client
def connectlocal(localhost, localport):
try:
localhost = socket.gethostbyname(localhost)
client = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
client.connect((localhost, localport))
client.setblocking(1)
logger = logging.getLogger('%s:%d' % ('Conn', client.fileno()))
logger.debug('New connection to: %s:%d' % (localhost, localport))
except socket.error:
return False
return client
def NgrokAuth():
Payload = dict()
Payload['ClientId'] = ''
Payload['OS'] = 'darwin'
Payload['Arch'] = 'amd64'
Payload['Version'] = '2'
Payload['MmVersion'] = '1.7'
Payload['User'] = 'user'
Payload['Password'] = ''
body = dict()
body['Type'] = 'Auth'
body['Payload'] = Payload
buffer = json.dumps(body)
return(buffer)
def ReqTunnel(Protocol, Hostname, Subdomain, RemotePort):
Payload = dict()
Payload['ReqId'] = getRandChar(8)
Payload['Protocol'] = Protocol
Payload['Hostname'] = Hostname
Payload['Subdomain'] = Subdomain
Payload['HttpAuth'] = ''
Payload['RemotePort'] = RemotePort
body = dict()
body['Type'] = 'ReqTunnel'
body['Payload'] = Payload
buffer = json.dumps(body)
return(buffer)
def RegProxy(ClientId):
Payload = dict()
Payload['ClientId'] = ClientId
body = dict()
body['Type'] = 'RegProxy'
body['Payload'] = Payload
buffer = json.dumps(body)
return(buffer)
def Ping():
Payload = dict()
body = dict()
body['Type'] = 'Ping'
body['Payload'] = Payload
buffer = json.dumps(body)
return(buffer)
def lentobyte(len):
return struct.pack('<LL', len, 0)
def sendbuf(sock, buf, isblock = False):
if isblock:
sock.setblocking(1)
sock.sendall(buf)
if isblock:
sock.setblocking(0)
def sendpack(sock, msg, isblock = False):
if isblock:
sock.setblocking(1)
sock.sendall(lentobyte(len(msg)) + msg.encode('utf-8'))
logger = logging.getLogger('%s:%d' % ('Send', sock.fileno()))
logger.debug('Writing message: %s' % msg)
if isblock:
sock.setblocking(0)
def tolen(v):
if len(v) == 8:
return struct.unpack('<II', v)[0]
return 0
def getRandChar(length):
_chars = "ABCDEFGHIJKLMNOPQRSTUVWXYZ0123456789abcdefghijklmnopqrstuvwxyz"
return ''.join(random.sample(_chars, length))
# 客户端程序处理过程
def HKClient(sock, linkstate, type, tosock = None):
global mainsocket
global ClientId
global pingtime
recvbuf = bytes()
while True:
try:
if linkstate == 0:
if type == 1:
sendpack(sock, NgrokAuth(), False)
linkstate = 1
if type == 2:
sendpack(sock, RegProxy(ClientId), False)
linkstate = 1
if type == 3:
linkstate = 1
recvbut = sock.recv(bufsize)
if not recvbut: break
if len(recvbut) > 0:
if not recvbuf:
recvbuf = recvbut
else:
recvbuf += recvbut
if type == 1 or (type == 2 and linkstate == 1):
lenbyte = tolen(recvbuf[0:8])
if len(recvbuf) >= (8 + lenbyte):
buf = recvbuf[8:lenbyte + 8].decode('utf-8')
logger = logging.getLogger('%s:%d' % ('Recv', sock.fileno()))
logger.debug('Reading message with length: %d' % len(buf))
logger.debug('Read message: %s' % buf)
js = json.loads(buf)
if type == 1:
if js['Type'] == 'ReqProxy':
newsock = connectremote(host, port)
if newsock:
thread = threading.Thread(target = HKClient, args = (newsock, 0, 2))
thread.setDaemon(True)
thread.start()
if js['Type'] == 'AuthResp':
ClientId = js['Payload']['ClientId']
logger = logging.getLogger('%s' % 'client')
logger.info('Authenticated with server, client id: %s' % ClientId)
sendpack(sock, Ping())
pingtime = time.time()
for tunnelinfo in Tunnels:
# 注册通道
sendpack(sock, ReqTunnel(tunnelinfo['protocol'], tunnelinfo['hostname'], tunnelinfo['subdomain'], tunnelinfo['rport']))
if js['Type'] == 'NewTunnel':
if js['Payload']['Error'] != '':
logger = logging.getLogger('%s' % 'client')
logger.error('Server failed to allocate tunnel: %s' % js['Payload']['Error'])
time.sleep(30)
else:
logger = logging.getLogger('%s' % 'client')
logger.info('Tunnel established at %s' % js['Payload']['Url'])
if type == 2:
if js['Type'] == 'StartProxy':
loacladdr = getloacladdr(Tunnels, js['Payload']['Url'])
newsock = connectlocal(loacladdr['lhost'], loacladdr['lport'])
if newsock:
thread = threading.Thread(target = HKClient, args = (newsock, 0, 3, sock))
thread.setDaemon(True)
thread.start()
tosock = newsock
linkstate = 2
else:
body = '<html><body style="background-color: #97a8b9"><div style="margin:auto; width:400px;padding: 20px 60px; background-color: #D3D3D3; border: 5px solid maroon;"><h2>Tunnel %s unavailable</h2><p>Unable to initiate connection to <strong>%s</strong>. This port is not yet available for web server.</p>'
html = body % (js['Payload']['Url'], loacladdr['lhost'] + ':' + str(loacladdr['lport']))
header = "HTTP/1.0 502 Bad Gateway" + "\r\n"
header += "Content-Type: text/html" + "\r\n"
header += "Content-Length: %d" + "\r\n"
header += "\r\n" + "%s"
buf = header % (len(html.encode('utf-8')), html)
sendbuf(sock, buf.encode('utf-8'))
if len(recvbuf) == (8 + lenbyte):
recvbuf = bytes()
else:
recvbuf = recvbuf[8 + lenbyte:]
if type == 3 or (type == 2 and linkstate == 2):
sendbuf(tosock, recvbuf)
recvbuf = bytes()
except socket.error:
break
if type == 1:
mainsocket = False
if type == 3:
if tosock.fileno() != -1:
tosock.shutdown(socket.SHUT_WR)
logger = logging.getLogger('%s:%d' % ('Close', sock.fileno()))
logger.debug('Closing')
sock.close()
# 客户端程序初始化
if __name__ == '__main__':
logging.basicConfig(level=logging.DEBUG, format='[%(asctime)s] [%(levelname)s] [%(name)s] %(message)s', datefmt='%Y/%m/%d %H:%M:%S')
logger = logging.getLogger('%s' % 'client')
logger.info('python-ngrok v1.46')
while True:
try:
# 检测控制连接是否连接.
if mainsocket == False:
ip = dnsopen(host)
if ip == False:
logger = logging.getLogger('%s' % 'client')
logger.info('update dns')
time.sleep(10)
continue
mainsocket = connectremote(ip, port)
if mainsocket == False:
logger = logging.getLogger('%s' % 'client')
logger.info('connect failed...!')
time.sleep(10)
continue
thread = threading.Thread(target = HKClient, args = (mainsocket, 0, 1))
thread.setDaemon(True)
thread.start()
# 发送心跳
if pingtime + 20 < time.time() and pingtime != 0:
sendpack(mainsocket, Ping())
pingtime = time.time()
time.sleep(1)
except socket.error:
pingtime = 0
except KeyboardInterrupt:
sys.exit()
將檔案放進qpython app的路徑下

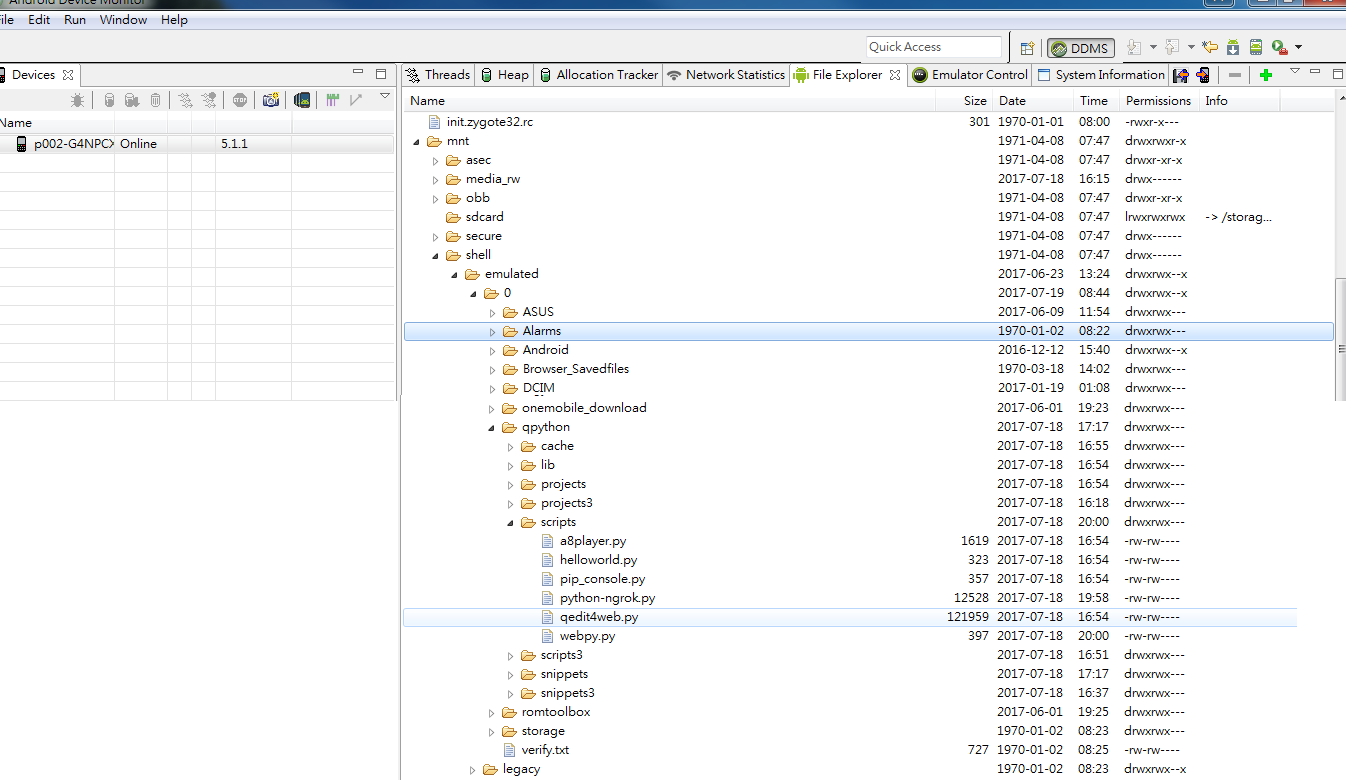

web.py ,跟 ngrok.py 用ddms匯入
執行web.py
執行ngrok.py 指定127.0.0.1:8080
