如題

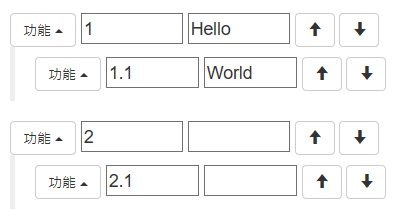

想要編輯與展示的資料如圖
可以利用[上][下]來同層調整順序。
利用[功能]來新增刪除或剪下貼上節點。
顯示樹結構的Html與樣板(遞迴顯示用)
<blockquote>
<p ng-repeat="node in ctl.Nodes" ng-include="'temp_view.html'"></p>
</blockquote>
<!--顯示樣版-->
<script type="text/ng-template" id="temp_view.html">
<span style="color:green">{{node.Name}}</span><span ng-show="node.Value">:</span><span>{{node.Value}}</span>
<blockquote ng-if="node.Nodes">
<p ng-repeat="node in node.Nodes" ng-include="'temp_view.html'"></p>
</blockquote>
</script>
編輯樹結構的Html與樣板(遞迴顯示用)
<blockquote>
<p ng-repeat="node in ctl.Nodes" ng-include="'temp_view.html'"></p>
</blockquote>
<!-- 編輯樣板 -->
<script type="text/ng-template" id="temp_update.html" >
<div class="dropup" ng-if="node != ctl.Clipboard">
<button class="btn btn-default dropdown-toggle" type="button" id="dropdownMenu2" data-toggle="dropdown" aria-haspopup="true" aria-expanded="false">
功能
<span class="caret"></span>
</button>
<ul class="dropdown-menu" aria-labelledby="dropdownMenu2">
<li><a href="#" ng-click="ctl.addBrother(node)">增加</a></li>
<li><a href="#" ng-click="ctl.remove(node)">刪除</a></li>
<li><a href="#" ng-click="ctl.addChild(node)">增加子項</a></li>
<li role="separator" class="divider"></li>
<li ng-if="!ctl.Clipboard"><a href="#" ng-click="ctl.cut(node)" >剪下</a></li>
<li ng-if="ctl.Clipboard"><a href="#" ng-click="ctl.paste(node)">貼上</a></li>
<li ng-if="ctl.Clipboard"><a href="#" ng-click="ctl.cutCancel()">取消</a></li>
</ul>
<input type="text" ng-model="node.Name" />
<input type="text" ng-model="node.Value" />
<button type="button" class="btn btn-default" ng-click="ctl.moveUp(node)">
<span class="glyphicon glyphicon-arrow-up"></span>
</button>
<button type="button" class="btn btn-default" ng-click="ctl.moveDown(node)">
<span class="glyphicon glyphicon-arrow-down"></span>
</button>
</div>
<blockquote ng-if="node.Nodes[0]">
<p ng-repeat="node in node.Nodes" ng-include="'temp_update.html'" ng-if="node != ctl.Clipboard"></p>
</blockquote>
</script>
AngularJS宣告注意 as ctl 這個宣告。
這個語法可以讓Controller物件的方法直接binding到View上來，不用$scope物件。
<body ng-app="app" ng-controller="HomeCtrl as ctl">
寫 HomeCtrl 使用TypeScript(tree.ts)
TypeScipt 在 asp.net core環境 會自動轉成 JavaScipt 只要向一般Script引用。但是把.ts改成.js就可以。
/// <reference path="../typings/angularjs/angular.d.ts" />
module app0 {
/** 節點定義 */
export interface INode {
/**名稱*/
Name?: string;
/**值*/
Value?: string;
/**子節點*/
Nodes?: Array<INode>;
}
/**
* Controller
*/
export class HomeCtrl {
static $inject = ["$scope"];
/**節點清單*/
private Root: INode = { Nodes: [] };
/**Nodes */
get Nodes(): Array<INode>
{
return this.Root.Nodes;
}
/**剪下的節點*/
Clipboard: INode=null;
constructor(public $scope: ng.IScope) {
this.Root.Nodes = [
{
Name: '1', Nodes: [
{
Name:'1.1'
}
]
},
{
Name: '2', Nodes: [
{
Name: '2.1'
}
]
},
];
}
/**
* 增加子節點
* @param node
*/
addChild(node: INode): void {
let n: INode = { Name: 'New Node' };
if (node.Nodes)
node.Nodes.push(n);
else
node.Nodes = [ n ];
}
/**
* 增加兄弟節點於給定節點的下方
* @param node
*/
addBrother(node: INode): void {
let p = this.findParent(node);
let idx = p.Nodes.indexOf(node);
let n = { Name: 'New Node' } as INode;
p.Nodes.splice(idx + 1, 0, n);
}
/**
* 移除節點
* @param node
*/
remove(node: INode): void {
let p = this.findParent(node);
let idx = p.Nodes.indexOf(node);
p.Nodes.splice(idx, 1);
}
/**
* 節點同層向上移動
* @param node
*/
moveUp(node: INode): void {
let p = this.findParent(node);
let idx = p.Nodes.indexOf(node);
if (idx <= 0)
return;
p.Nodes.splice(idx, 1);
p.Nodes.splice(idx - 1, 0, node);
}
/**
* 節點同層向上移動
* @param node
*/
moveDown(node: INode): void {
let p = this.findParent(node);
let idx = p.Nodes.indexOf(node);
if (idx >= p.Nodes.length - 1)
return;
p.Nodes.splice(idx, 1);
p.Nodes.splice(idx +1, 0, node);
}
/**
* 剪下節點
* @param node
*/
cut(node: INode): void {
this.Clipboard = node;
}
/**
* 取消剪貼簿
* @param node
*/
cutCancel(node: INode): void {
this.Clipboard = null;
}
/**
* 貼上節點
* @param node
*/
paste(node: INode): void {
//remove from original
{
let p = this.findParent(this.Clipboard);
let idx = p.Nodes.indexOf(this.Clipboard);
p.Nodes.splice(idx, 1);
}
//insert to new place
{
let p = this.findParent(node);
let idx = p.Nodes.indexOf(node);
p.Nodes.splice(idx + 1, 0, this.Clipboard);
this.Clipboard = null;
}
}
/**
* 搜尋父節點
* @param node
*/
findParent(node: INode): INode {
function ff(theNode: INode): INode {
if (!theNode.Nodes)
return null;
let idx = theNode.Nodes.indexOf(node);
if (idx >= 0)
return theNode;
for (var x of theNode.Nodes) {
let r = ff(x);
if (r)
return r;
}
return null;
}
return ff(this.Root);
}
hello(): void {
alert('Hello World');
}
}
}
//註冊Controller
angular.module('app', [])
.controller('HomeCtrl', app0.HomeCtrl)
;
完整的HTML
<!DOCTYPE html>
<html lang="zh-tw">
<head>
<meta charset="utf-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="width=device-width, initial-scale=1">
<!-- The above 3 meta tags *must* come first in the head; any other head content must come *after* these tags -->
<title>AngularJS樹狀顯示與編輯</title>
<!-- Bootstrap -->
<link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.7/css/bootstrap.min.css">
<!-- jQuery (necessary for Bootstrap's JavaScript plugins) -->
<script src="https://ajax.googleapis.com/ajax/libs/jquery/1.12.4/jquery.min.js"></script>
<!-- Include all compiled plugins (below), or include individual files as needed -->
<script src="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.7/js/bootstrap.min.js"></script>
<script src="https://ajax.googleapis.com/ajax/libs/angularjs/1.5.5/angular.min.js"></script>
<script src="https://ajax.googleapis.com/ajax/libs/angularjs/1.5.5/angular-route.min.js"></script>
<script src="tree.js"></script>
<!-- HTML5 shim and Respond.js for IE8 support of HTML5 elements and media queries -->
<!-- WARNING: Respond.js doesn't work if you view the page via file:// -->
<!--[if lt IE 9]>
<script src="https://oss.maxcdn.com/html5shiv/3.7.3/html5shiv.min.js"></script>
<script src="https://oss.maxcdn.com/respond/1.4.2/respond.min.js"></script>
<![endif]-->
<style>
div > input
{
width:20%
}
</style>
</head>
<body ng-app="app" ng-controller="HomeCtrl as ctl">
<div class="container">
<div class="jumbotron">
<h2>AngularJS樹狀顯示與編輯</h2>
<p>
展示如何利用AngularJS來做樹狀結構的顯示與編輯。
</p>
<p>
<button class="btn btn-primary btn-lg" ng-click="ctl.hello()" >Say Hello</button>
</p>
</div>
<!-- 編輯樣板 -->
<script type="text/ng-template" id="temp_update.html" >
<div class="dropup" ng-if="node != ctl.Clipboard">
<button class="btn btn-default dropdown-toggle" type="button" id="dropdownMenu2" data-toggle="dropdown" aria-haspopup="true" aria-expanded="false">
功能
<span class="caret"></span>
</button>
<ul class="dropdown-menu" aria-labelledby="dropdownMenu2">
<li><a href="#" ng-click="ctl.addBrother(node)">增加</a></li>
<li><a href="#" ng-click="ctl.remove(node)">刪除</a></li>
<li><a href="#" ng-click="ctl.addChild(node)">增加子項</a></li>
<li role="separator" class="divider"></li>
<li ng-if="!ctl.Clipboard"><a href="#" ng-click="ctl.cut(node)" >剪下</a></li>
<li ng-if="ctl.Clipboard"><a href="#" ng-click="ctl.paste(node)">貼上</a></li>
<li ng-if="ctl.Clipboard"><a href="#" ng-click="ctl.cutCancel()">取消</a></li>
</ul>
<input type="text" ng-model="node.Name" />
<input type="text" ng-model="node.Value" />
<button type="button" class="btn btn-default" ng-click="ctl.moveUp(node)">
<span class="glyphicon glyphicon-arrow-up"></span>
</button>
<button type="button" class="btn btn-default" ng-click="ctl.moveDown(node)">
<span class="glyphicon glyphicon-arrow-down"></span>
</button>
</div>
<blockquote ng-if="node.Nodes[0]">
<p ng-repeat="node in node.Nodes" ng-include="'temp_update.html'" ng-if="node != ctl.Clipboard"></p>
</blockquote>
</script>
<!--顯示樣版-->
<script type="text/ng-template" id="temp_view.html">
<span style="color:green">{{node.Name}}</span><span ng-show="node.Value">:</span><span>{{node.Value}}</span>
<blockquote ng-if="node.Nodes">
<p ng-repeat="node in node.Nodes" ng-include="'temp_view.html'"></p>
</blockquote>
</script>
<div class="row">
<div class="col-sm-6">
<blockquote>
<p ng-repeat="node in ctl.Nodes" ng-include="'temp_view.html'"></p>
</blockquote>
</div>
<div class="col-sm-6">
<blockquote>
<p ng-repeat="node in ctl.Nodes" ng-include="'temp_update.html'" ng-if="node != ctl.Clipboard"></p>
</blockquote>
</div>
</div>
<div class="row">
<div class="col-sm-12">
<pre class="code">{{ ctl.Nodes | json }}</pre>
</div>
</div>
</div>
</body>
</html>
